Back panel mounting bracket for imc CRONOSflex

Get price quote

Function: Module mounting via back panel

Angle: 90° angular

Attachment: 2 x M4

Properties: The angular mounting bracket: CRFX/BRACKET-BACK is designed for installing imc CRONOSflex modules on a flat surface. This bracket must be installed on the module's back panel.

Due to the tight spacing between the block of modules and the flat surface, the modules require the special accessory: 90° angular LEMO and RJ45 plug.

Special accessories: 90° angular LEMO and RJ45 plug

Included accessories:

  • 1x back panel mounting bracket
  • 2x cylinder screws DIN 7984 M4x8

Order Code: CRFX/BRACKET-BACK article number: 1190070

Back panel mounting bracket (CRFX/BRACKET-BACK)

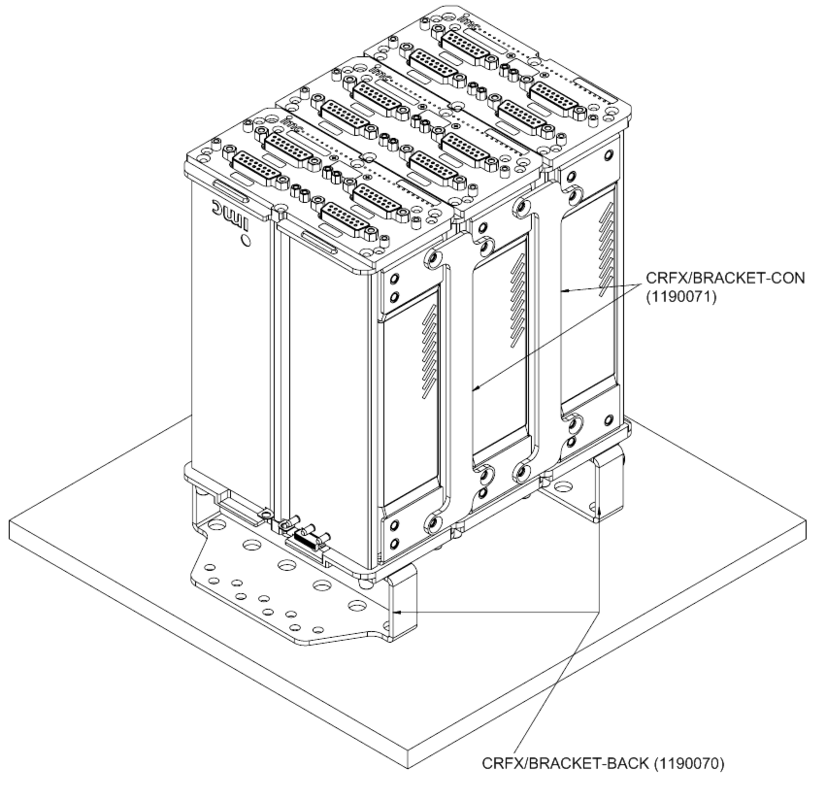

Two back panel mounting brackets are necessary to install the modules in the way shown.

Additional mounting systems for imc CRONOSflex
