Module interconnect bracket for imc CRONOSflex

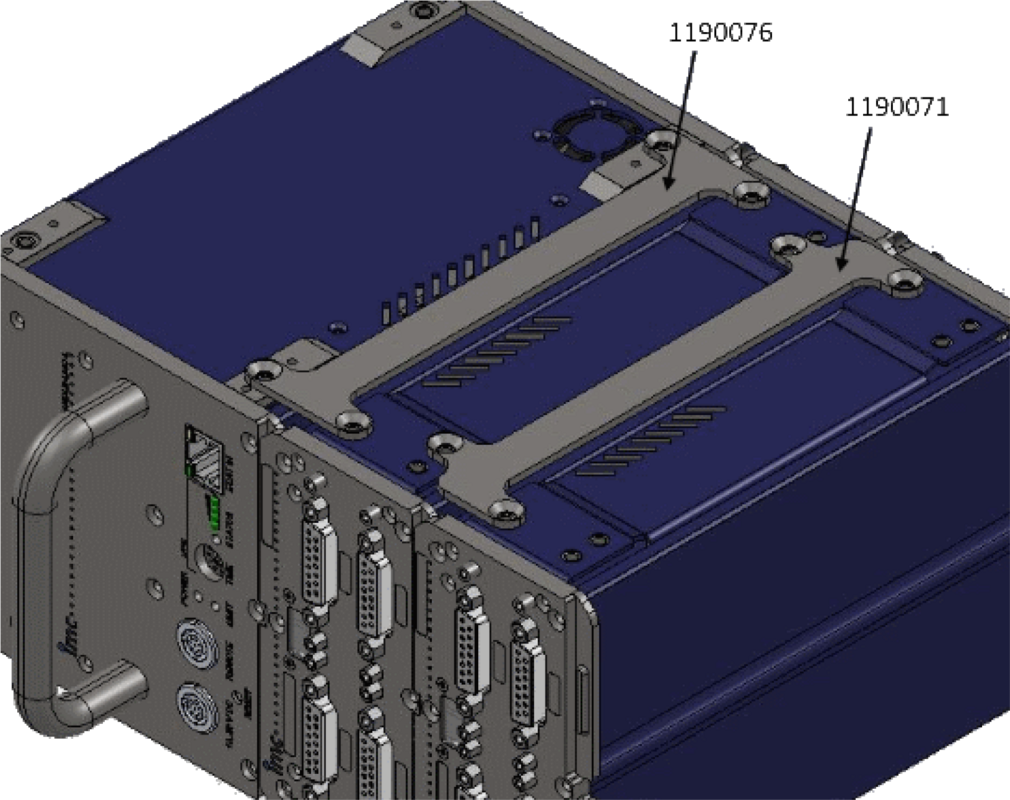

The  module interconnect bracket reinforces the imc Click Mechanism of the imc CRONOSflex modules in applications where extreme mechanical stress is expected. The module interconnect bracket must be installed on the cover plate and/or the bottom plate of the imc CRONOSflex module. The following drawing illustrates the two different Interconnect Brackets available:

The first bracket displayed in the picture is CRFX/BRACKET-CON-GR2-O (1190076) for reinforcing the Click Mechanism of the Power Handle (CRFX/HANDLE-LI-IO-L) and a measurement module. Only this Interconnect Bracket (CRFX/BRACKET-CON-GR2-O) can only be used with imc CRONOSflex Handles. The second bracket displayed in the following drawing is the CRFX/BRACKET-CON (1190071).

This interconnect bracket CRFX/BRACKET-CON-GR2-O (1190076) can be used with all imc CRONOSflex modules.

Exception: If, for instance a CRFX/ISO2-8 is clicked to the left side of another module, the interconnect bracket CRFX/BRACKET-CON-GR2-0 (1190076) can not be used.

Module interconnect bracket
Module interconnect bracket (CRFX/BRACKET-CON)

Module interconnect bracket (CRFX/BRACKET-CON)

Function: Coupling of modules

Angle: 180° flat

Attachment: 4 x M4

Properties: Compatibility issues may require two different Interconnect Brackets.

Included accessories:

  • 1x interconnect bracket
  • 4x recessed countersunk flat head screws M4x6

Order Code: CRFX/BRACKET-CON, article number: 1190071

Get price quote

Module interconnect bracket (CRFX/BRACKET-CON-GR2-O)

Function: Coupling of modules, reinforcement of click mechanism

Angle: 180° flat

Attachment: 4 x M4

Properties: This Interconnect Bracket CRFX/BRACKET-CON-GR2-O (1190076) can be used with all imc CRONOSflex modules. Exception: If, for instance a CRFX/ISO2-8 is clicked to the left side of another module, the interconnect bracket CRFX/BRACKET-CON-GR2-0 (1190076) can not be used.

Included accessories:

  • 1x interconnect bracket
  • 4x recessed countersunk flat head screws M4x6

Order Code: CRFX/BRACKET-CON-GR2-O article number: 1190076

Get price quote
