Aerospace Testing

Ready for Take-off?

Aerospace and eVTOL Testing -
Advancing Flight and Safety

Avionics testing ensures passenger safety and sustains the future of the aviation industry. Innovation and accuracy are imperative, as modern avionics systems rely on precise measurement data for practical and complex simulations. Aerospace and evTOL testing validates components and evaluates performance through several approaches. Ground testing evaluates components in a controlled setting, while structural testing ensures durability. Flight testing confirms capabilities through real-world maneuvers, enhancing flight characteristics after simulation and ground phases.

Highly accurate and reliable data acquisition

Supporting virtually all sensors and interfaces

Real time analysis, monitoring and data reduction

Based around the IRIG 106 standards

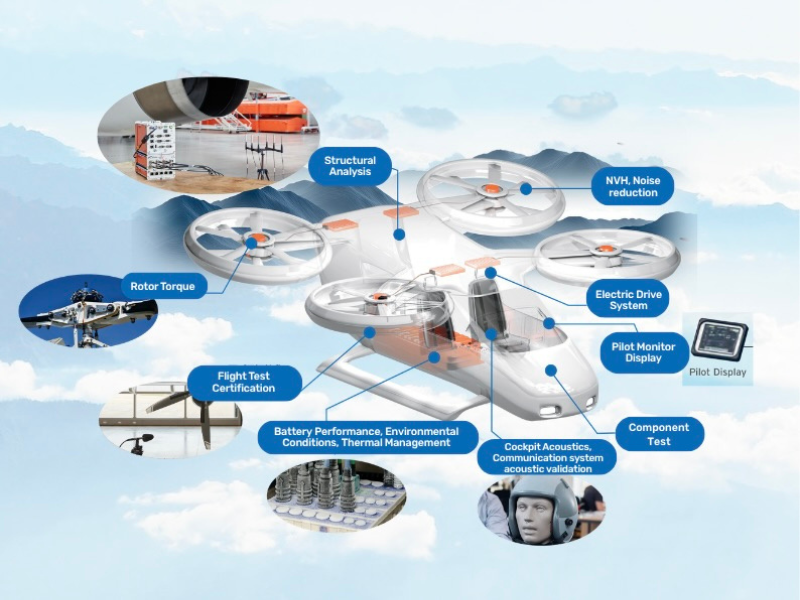

eVTOL Testing

Integrated DAQ Solutions for R&D and Certification

Testing eVTOL aircrafts involves multiple dimensions, including structural, powertrain, electrical, and acoustic aspects, and requires precise, integrated, and reliable testing solutions. The Axiometrix Solutions brands imc and GRAS offer end-to-end integrated DAQ solutions that support efficient R&D and successful certification.

Data acquisition for high-sepped rotating components

Data acquisition in harsh environments

Precise synchronized data acquisition from multiple sources

Noise characteristics and certification

Simplicity and Maximum Flexibility in Recording and Analyzing Aircraft Parameters

In aviation, flight test instrumentation is crucial for gathering essential measurement data and parameters required for certification by aviation authorities. Diverse technologies and tools decode and interpret data during flight trials, offering a detailed overview of an aircraft's performance.

Key components include the flight recorder, analog sensor data, switching states, field bus info, and communication protocols like ARINC 429, ARINC 664, or MIL-STD-1553B from the flight control system. The flight control system manages maneuverability and stability, with flight test instruments capture data on control surface configurations, response times, and flight dynamics. Engineers use these measurements to optimize performance and safety.

An aircraft manufacturer's ‘Flight Test Instrumentation’ division uses data acquisition systems (DAS or DAQ for short) whose task is to record analogue sensor data. Such systems record several hundred to a thousand measurement channels, the most common sensors being strain gauges and sensors for measuring temperature or vibration. Force, pressure, displacement, angle and flow sensors are also used. In addition to recording the analogue signals, the digital data of the avionics system must also be recorded synchronously. To do this, digital interfaces such as ARINC or MIL-Bus must be able to be read and decoded by the DAQ system.

Aerospace ground equipment acts as an intermediary, enabling real-time communication, data stream monitoring, and seamless information exchange between the aircraft and ground operations. This facilitates reviewing and replicating flight maneuvers, enhancing test process flexibility and adaptability.

Measurement data can be stored within the flight test measurement system or on the flight test engineer's workstation, or transmitted directly to a ground station via IRIG 106 telemetry standards. Aerospace ground equipment includes a reception antenna for telemetry signals, a system for PCM data stream decoding, and the capability to route distinct measurement data to separate workstations. This integration enhances communication and monitoring, streamlining the flight testing process.

Test Stand and Rig Solutions

Customized with a high degree of adaptation

Structural analysis of components (e.g., airframes, wings, rotor blades, landing gear, actuators, motors). Strain and stress measurement and control for calibration, static, fatigue and endurance test beds. Strain measurements on composite materials Turbine engine test cell instrumentation. Integrated automated test stand control and alarm systems.

Hardware-in-the-Loop (HiL) solutions for nose-wheel steering, iron bird and ISTR rigs. Development testing of cargo loading systems. Integrated ATP test stands for production and quality control. Development test bed for high-lift systems. Pressure and temperature scanner interfaces for turbine engine test cells. Vibration monitoring hardware and software.

Your benefit - our goal

We sell complete solutions not only products
One-stop shop for efficient measurement solutions - throughout the whole testing cycle
Anti-aliasing of analog inputs
Decentralized and distributed measurement - effective, flexible and reliable
TEDS-capability for automated sensor integration
Synchronous and multi-channel data acquisition
Rapid and reliable measurement results with integrated hardware and software solutions
All imc systems are software-configurable
Broad support of bus data systems (ARINC-429, ASCB-D, CAN, RS422 etc.)
User-specific extensions
