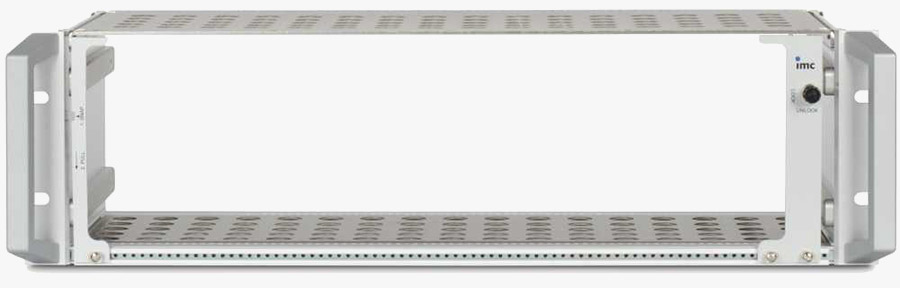

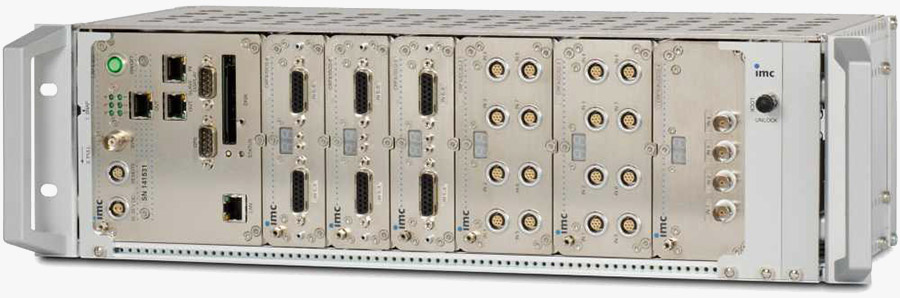

When clicked together in a stack imc CRONOSflex Modules can be mounted in a special 19" rack (CRFX/RACK19"). Any stack of modules must be installed on the left end of the CRFX/RACK. The remaining space on the right side is then covered with special plates ("front cover panel"). The width of each module is stated in its respective data sheet. A block of modules thus overlaps in its outer dimensions and is narrower than the sum of its individual elements.
The imc 19" rack is designed for an imc CRONOSflex system respectively module stacks having a maximum width of 405 mm.
Included accessories:
- 1x CRFX/RACK
- 1x left mounting element
- 1x right mounting element
Order Code: CRFX/RACK, article number: 11900066
Optional accessories
CRFX/RACK-BP-4TU front panel 4TU (small) for empty slot in the RACK 11900077
CRFX/RACK-BP-8TU front panel 8TU (middle) for empty slot in the RACK 11900078
CRFX/RACK-BP-16TU front panel 16TU (big) for empty slot in the RACK 11900079
