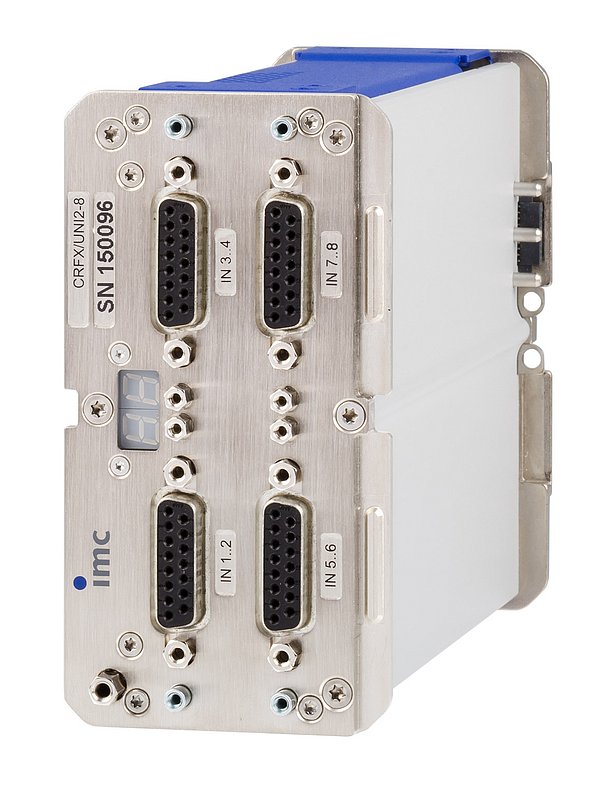

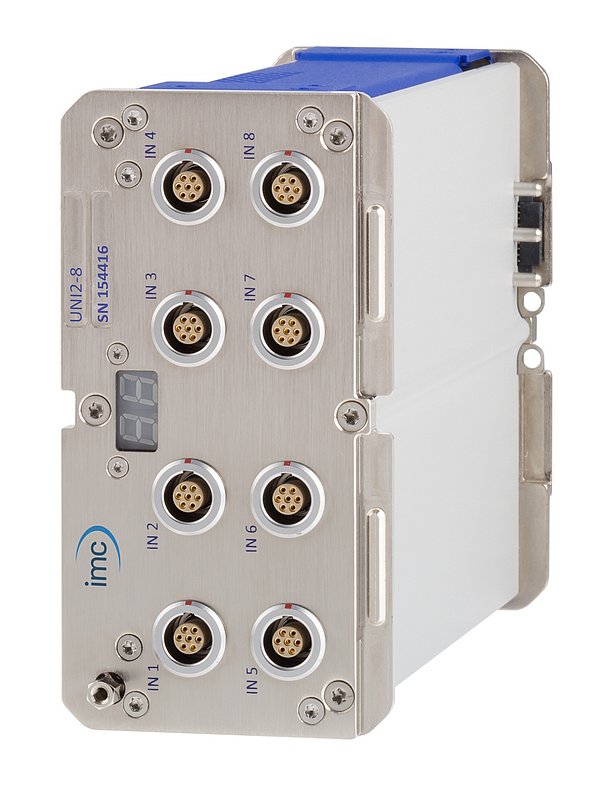

8-channel, high-performance universal measurement amplifier

The UNI2-8 is a universal measurement amplifier. With 8 differential analog inputs, it is capable of measuring:

• Voltage and current (20 mA)
• Temperature (thermocouple and PT100)
• Bridge and strain gauge (quarter-, half- and full-bridge)
• IEPE/ICP sensors (via the optional DSUB terminal connector)

For powering external sensors or bridge measurements, a software selectable (2.5 V to 24 V) sensor supply is integrated.

Highlights:

• An amplifier for all relevant measurement quantities
• Very high signal bandwidth of up to 48 kHz
• Finely adjustable input voltage range (±5 mV to ±50 V)
• Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
• Graphical configuration wizard to set strain gauge bridges
• Software selectable quarter-bridge completion 120 and 350 Ω
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451)

Typical applications: Provides maximum flexibility for changing measurement and sensor requirements.

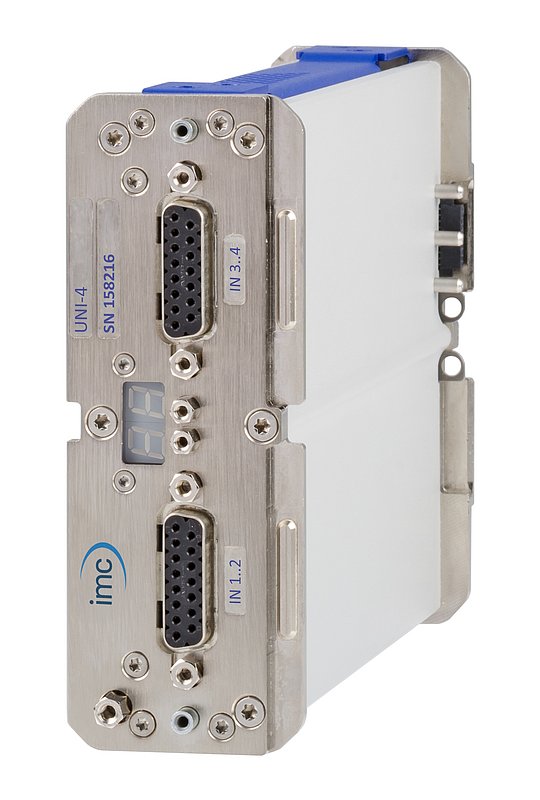

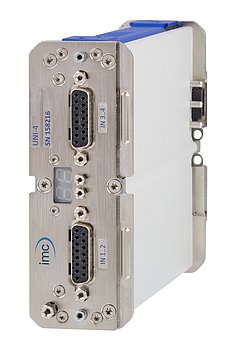

4-channel, high-performance universal measurement amplifier

The UNI-4 is the most universal measurement amplifier in the portfolio. With 4 differential analog inputs, it is capable of measuring:

• Voltage and current (isolated measurement)
• Temperature (thermocouple, isolated measurements)
• PT100, PT1000
• Bridge and strain gauge (quarter-, half- and full-bridge)
• IEPE/ICP sensors (via the optional DSUB terminal connector)

Channel-wise, independently configurable supply voltages (non-isolated) between 0.25 V to 24 V are available for supplying external sensors or bridge measurements.
The channels are individually, galvanically-isolated for voltage, current and thermocouple measurements. Each channel is equipped with its own simultaneous A/D converter and adjustable filter (e.g., anti-aliasing filter).

Highlights:

• Individual, galvanically-isolated measurement of voltage, current and thermocouples
• Channel-wise, individually configurable sensor and bridge supply
• PT100 and PT1000 supported
• High signal bandwidth of up to 48 kHz
• Internal quarter-bridge completion of 120, 350 and 1 kΩ
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451)

Typical applications: Provides maximum flexibility for changing measurement and sensor requirements, including channel-wise, individual sensor supplies.

8-channel differential measurement amplifier

The LV3-8 is a differential measurement amplifier with 8 channels for measuring:

• Voltage and current (20 mA)
• IEPE/ICP sensors (with optional DSUB terminal connector)

Highlights:

• Economical, high-resolution measuring of current and voltage
• Finely adjustable input voltage range (±5 mV to ±50 V)
• High signal bandwidth up to 48 kHz
• Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

Typical applications: Ideally suited for measurements of signals, voltage-based sensors, as well as 20 mA process variables with higher bandwidths.

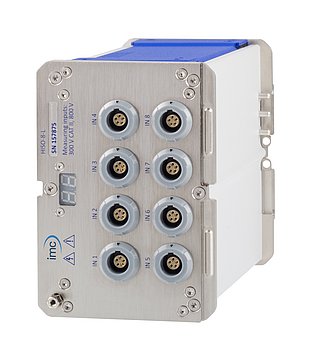

8-channel, isolated differential measurement amplifier

The ISO2-8 is an isolated, differential measurement amplifier with 8 galvanically-separated, floating channels for high-precision measuring:

• Voltage and current (20 mA)
• Temperature (thermocouples and PT100)
• ICP sensors (with optional DSUB terminal connector)

Highlights:

• Channel-wise isolated, galvanically-separated inputs
• Finely adjustable input voltage range (±5 mV to ±50 V)
• High signal bandwidth up to 11 kHz
• Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

Typical applications: Ideally suited for measurements with unclear potential conditions such as in-vehicle or in the railway sector.

8-channel, faster and isolated differential amplifier

The ISOF-8 is an isolated differential measurement amplifier with 8 galvanically-isolated channels for highly accurate measurements of:

• Voltage and current (20 mA)
• Temperature (Thermocouple and PT100)
• IEPE/ICP sensors (with optional DSUB terminal connector)

Highlights:

• Channel-wise isolated, galvanically-separated inputs
• Finely adjustable input voltage range (from ±50 mV to ±60 V)
• High signal bandwidth up to 48 kHz
• Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

Typical Applications: Ideally suited for measurements with unclear potential conditions such as in-vehicle or in the railway sector with higher bandwidths.

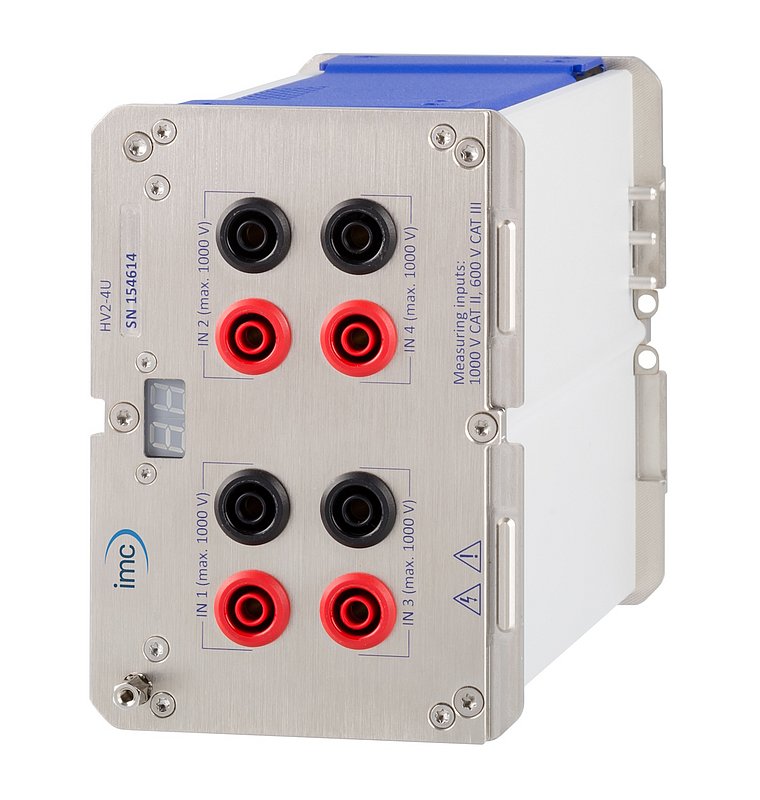

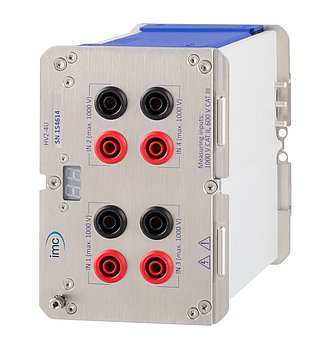

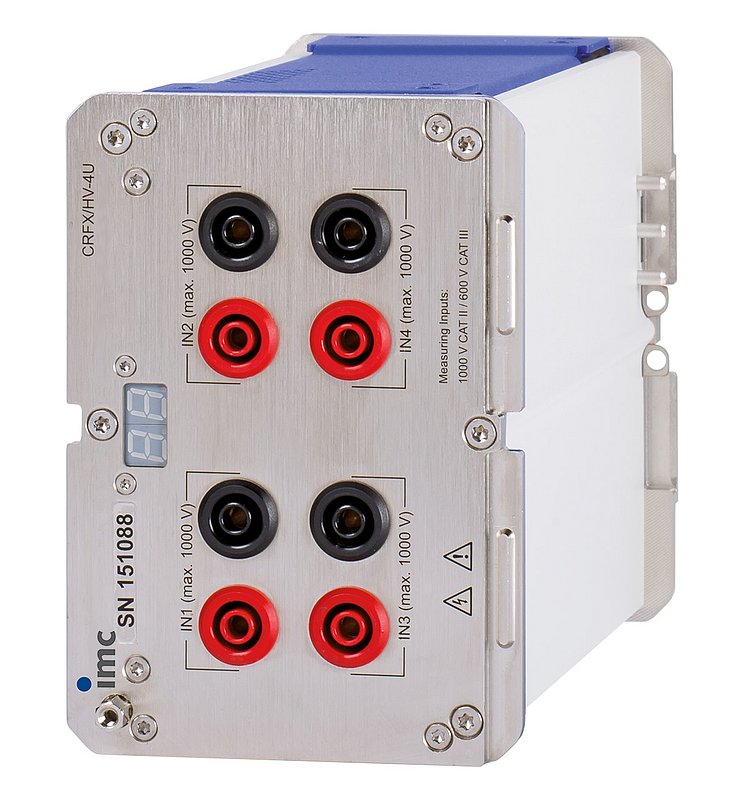

4-channel module for measurement of high voltages

With the 4-channel HV2-4U measurement amplifier, high voltages of up to 1000 V can be measured.
The imc CRONOSflex High Voltage input module (CRFX/HV2-4U) is ideally suited for isolated measurements of high voltage signals up to ±1000 V, as encountered in power quality monitoring and power efficiency analysis of electrical drive systems or hybrid vehicles.

Highlights:

• Measurement of voltages of up to 600 V_RMS (CAT III) / 1000 V_RMS (CAT II)
• 48 kHz analog bandwidth (-3 dB)
• Phase accuracy better than 1° for measurements of up to the 50th harmonic of 50/60 Hz line voltage
• Input ranges from ±1000 V to ±2.5 V, selectable per channel

Typical applications: Ideal for power measurements, electric motor measurements, batteries, fuel cells, etc.

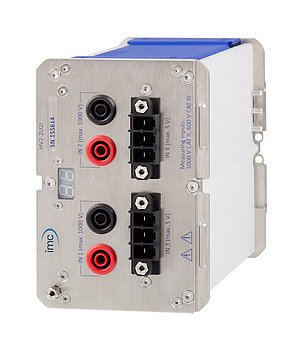

4-Channel module for the measurement of high voltage and current

With the HV2-2U2I four-channel amplifier, two channels can be used for measuring voltages up to 1000 V, and two channels are available to measure with current probes.

Highlights:

• Measurement of voltages of up to 600 V_RMS (CAT III) / 1000 V_RMS (CAT II)
• 48 kHz analog bandwidth
• Analog bandwidth allows for measurements of up to the 50th harmonic
• Acquisition with current probes or low voltages possible
• Direct support for use of Rogowski coils

Typical Applications: Ideal for power measurements, electric motors measurements, batteries, fuel cells, etc.

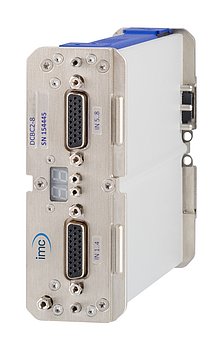

8-channel bridge measurement amplifier for multi-channel strain gauge applications with medium bandwidth

The DCB(C)2-8 is an economical DC bridge amplifier. With 8 differential analog inputs, it allows the measurement of:

• Voltage and current (20 mA)
• Stain gauges, bridge sensors
• IEPE/ICP sensors (with optional DSUB terminal connector)

For powering external sensors or bridge measurements, a software selectable sensor supply is integrated.

Highlights:

• Medium signal bandwidths of up to 5 kHz
• Sensor supply with adjustable voltage supply
• Software selectable quarter-bridge completion between 120 and 350 Ω
• Graphical configuration wizard to set strain gauge bridges
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))
• Also available with compact, high-density DSUB terminal connections (variant "C")

Typical applications: strain gauge measurements, load cells, pressure sensors, universal voltage measurements.

8-channel bridge measurement  amplifier for multi-channel, dynamic strain gauge applications

The B(C)-8 is a DC bridge amplifier with 8 differential analog inputs of higher bandwidths allowing the measurement of:

• Voltage and current (20 mA)
• Stain gauges, bridge sensors
• IEPE/ICP sensors (with optional DSUB terminal connector)

For powering external sensors or bridge measurements, a software selectable sensor supply is integrated.

Highlights:

• Very high signal bandwidth of up to 48 kHz
• Software selectable quarter-bridge completion between 120 and 350 Ω
• Graphical configuration wizard to set strain gauge bridges
• Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))
• Also available with compact, high-density DSUB terminal connections (variant "C")

Typical applications: strain gauge measurements, load cells, pressure sensors, universal voltage measurements with higher bandwidths.

4-channel, high-performance bridge measurement amplifier

The BR2-4 is a universal DC and CF bridge measurement amplifier for 4 channels and can also be used as a DC differential amplifier. It is capable of measuring:

• 4 strain gauges, with selectable DC or CF (AC) excitation
• LVDT
• Voltage and current (20 mA)
• IEPE/ICP sensors (with optional DSUB terminal connector)

Highlights:

• Carrier frequency excitation (5 kHz) for bridges and LVDT
• Single and dual sense line configurations are supported (e.g., 5/6-wire connection with full-bridge)
• Symmetric bridge supply of 1 V, 2.5 V, 5 V and with DC, as well as CF (AC) mode
• Broken wire detection
• Integrated calibration resistor for shunt calibration
• Software selectable quarter-bridge completion 120 and 350 Ω
• Graphical configuration wizard to set strain gauge bridges

Typical applications: Ideal for bridge measurements in CF mode with elevated requirements for noise suppression and stability, as well as LVDT and inductive displacement sensors.

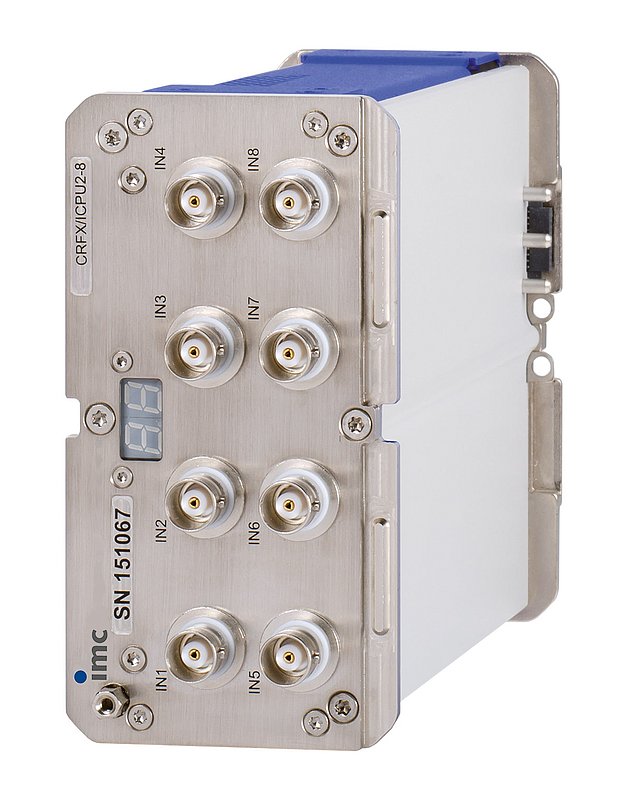

8-channel ICP-measurement amplifier

The ICPU2-8 is a broadband measurement amplifier for the measurement of:

• IEPE/ICP sensors (current-fed 4 mA)
• Voltage (AC and DC coupling)

Direct connection of ICP-compatible sensors (ICP™, DELTATRON®, PIEZOTRON® sensors) takes place via BNC connectors.

Highlights:

• High signal bandwidth of up to 48 kHz
• Finely adjustable input voltage range (from ±5 mV to ±50 V)
• Input coupling switchable via software: DC, AC, AC with current supply
• Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
• Supports imc Plug & Measure conforming to IEEE 1451.4 (Class I mixed mode interface)

Typical applications: Ideal for noise and vibration analysis and acceleration measurements.

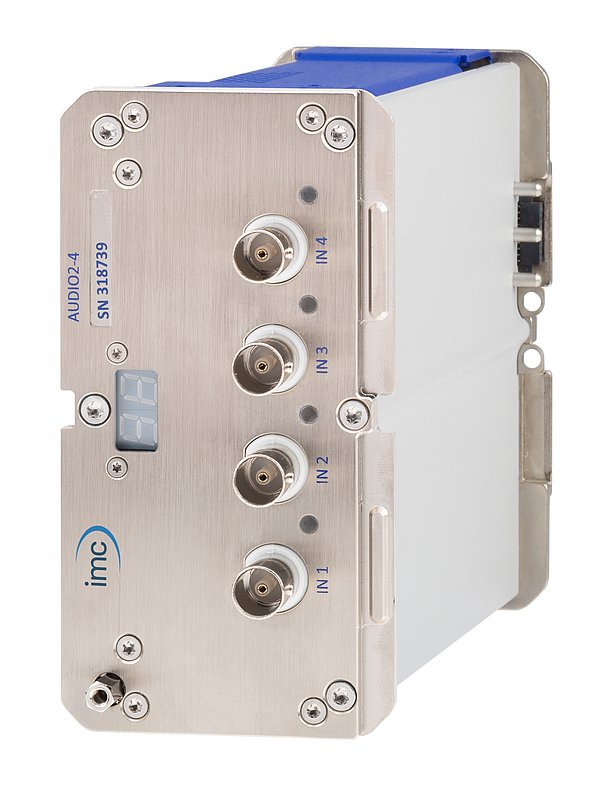

4-channel audio measurement module

The AUDIO2-4 measurement module has four individual, galvanically-isolated channels for the acquisition of:

• IEPE/ICP sensors (current-fed 4 mA)
• Voltage (AC and DC coupling)

Direct connection of ICP-compatible sensors (ICP®, Deltatron®, Piezotron® sensors) takes place via BNC connectors.

Highlights:

• Per-channel galvanic isolation
• Robust and feedback-free signal acquisition
• Signal bandwidth 48 kHz
• Large signal-to-noise ratio (-110 dB SNR)
• Low signal distortion (-115 dB THD)
• High-precision measurements over broad voltage ranges
• Supports imc Plug & Measure conforming to IEEE 1451.4 (Class I mixed mode interface). Optional supply unit for a condenser microphone available (AUDIO2-4-MIC)

Typical applications: Ideal for noise measurements, noise and vibration analysis and measuring acceleration.

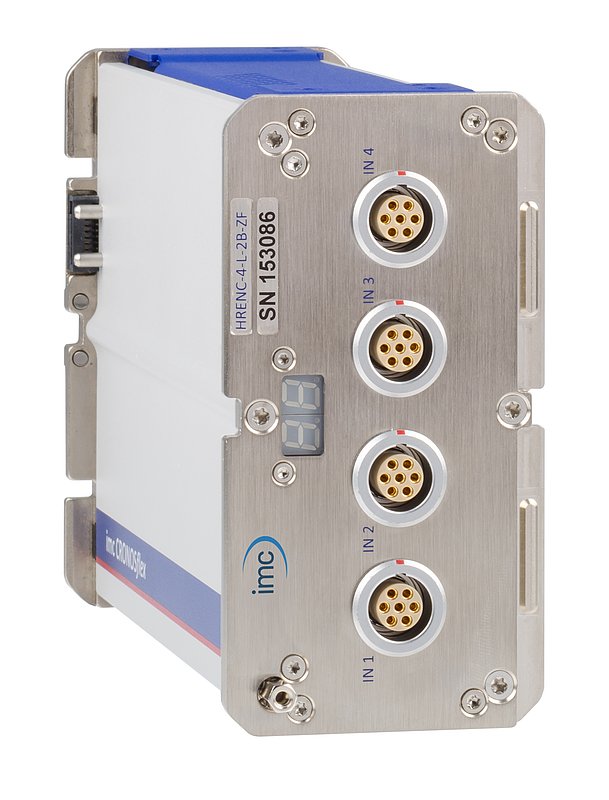

The imc CRONOSflex Module (CRFX/HRENC-4) serves to measure signals whose time- or frequency information is to be captured. In contrast to the case with analog channels, to actual measurement
does not consist of repeated sampling at a fixed time interval. Instead, digital counters are used to determine either the count of pulses occurring or the time intervals between defined signal slope
events. For the time measurement/ maximum frequency, a resolution of approx. 3.9 ns (256MHz) is achieved. When using two-track sine/cosine signal encoders, conversion to digital values for determining the rotation direction and the absolute count of increments (full periods) is performed. Additionally, detailed information about the position can be gained by analog evaluation of
the sine/ cosine signal, which results in yet further increased resolution.

Highlights

• The HRENC-4 is both a digital comparator and serves the purposeof analog evaluation (sine / cosine signals).
• Fully conditioned (differential input and filter)
• 256MHz measurement time resolution
• Feedback of revolution speed etc. to precise time measurement

This amplifier is especially designed for sensors that are able to convert electrical, physical dimensions in frequency. These sensors spent in a "state of rest" (input parameter = 0) a frequency not equal
zero. The physical dimension combined with the scaling factor has to be entered into the basis card.
By means of taring in the dialog 'amplifier adjustment' this state of rest is tared as a zero position. Frequencies that are smaller than that state of rest will be notified as negative physical values.

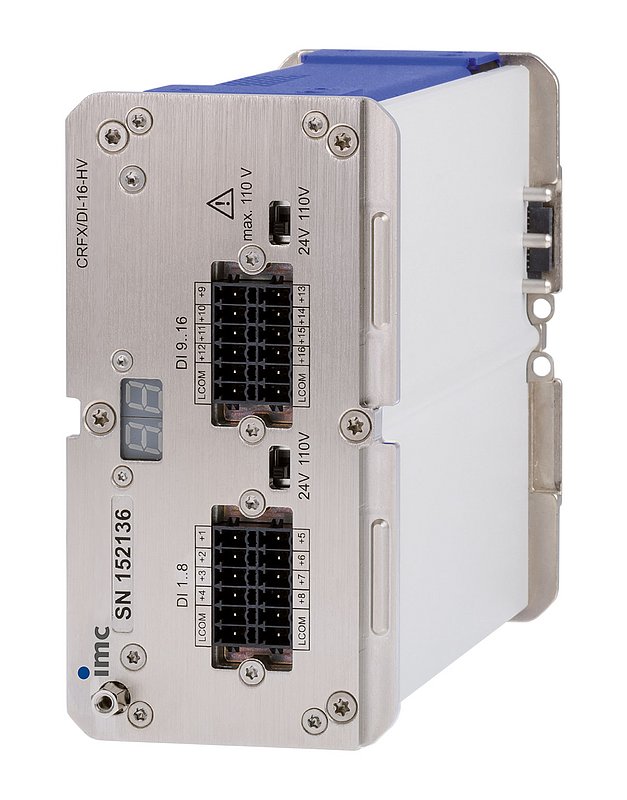

This family of modules provides in- and output of digital signals and extend imc CRONOSflex systems with the capability to control measurement environments such as test stands. The digital inputs (DI2-xx) allow sampling of digital signals having TTL/CMOS or 24 V logic levels.

Highlights DI2-xx

• Galvanically-isolated 4 Bit groups
• Configurable for 5 V or 24 V level (of 8 Bit groups)

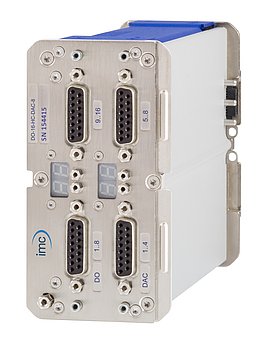

The digital outputs (DO-xx-HC) provide isolated control signals with high output current capabilities. The signals' states can be generated by imc Online FAMOS as the result of live calculations or be assigned to states of the trigger machine.

Highlights DO-xx-HC

• Galvanically-isolated 8 Bit groups
• Compatible with 5 V and 24 V Volt output level
• Configurable driver modes (Open Drain / Open Source / Totem Pole)
• 0.7 A / Bit drive current (sink and source)

16-channel modules provide 16 Bit of the same type (DI or DO).

32-channel modules can be chosen as pure DO or DI type modules or as a combined one (16+16). Those modules are implemented as "Double-modules" acting as two logical modules with their respective IDs displayed on two 7-segment displays.
