Click-mechanism for more comfort
The imc CANSASfit series modules can be quickly connected using the click-mechanism: both mechanically and electrically. Blocks can easily be formed by simply clicking individual modules together without the use of wiring or fasteners.
Complement imc CANSAS modules with an imc data logger
imc CANSAS measurement modules are perfectly complemented with an imc data logger - for example with an imc CRONOScompact or imc imc BUSDAQ.These are well-suited for use in, e.g., control device development or ECU testing where real-time acquisition and calculating of vehicle or field bus data is needed.
Module overview
| T-10 | UTI-6 | ENC-6 | HISO-UT-6-3L | HISO-T-8-2L | HISO-HV-4 | |
|---|---|---|---|---|---|---|
| Channel number | 10 | 6 | 6 | 6 | 8 | 4 |
| Sampling rate / channel | 100 Hz | 1000 Hz | 1000 Hz | 1000 Hz | 100 Hz | 1000 Hz |
| Bandwidth / channel | 20 Hz | 400 Hz | 2 MHz | 400 Hz | 33 Hz | 400 Hz |
| Galvanic isolation | ||||||
| Sensor supply | ||||||
| Input signals | ||||||
| Voltage max. Voltage | 60 V | 100 V | 1500 V | |||
| Current 0 … 20mA | ||||||
| RTD (PT100 … PT1000) | ||||||
| NTC, resistance (100 Ohm ... 100 kOhm) | ||||||
| Thermocouple | ||||||
| Frequency | ||||||
| Distance | ||||||
| Angle | ||||||
| Speed | ||||||
| RPM | ||||||
| Time | ||||||
| Socket | ||||||
| LEMO | ||||||
| Thermo | ||||||
| Banana |
| Key: | Default | Optional |
imc CANSASfit-T-10
10 channel module for measuring temperatures
The T-10 module from the imc CANSASfit series is a 10 channel module for measuring temperatures with thermocouples.
Highlights:
- High temperature resistance
- Module operating temperature: -40°C to 125°C
- Robust housing
- Small and compact design
- Modules are connected mechanically and electrically with click-mechanism
- 24 bit A/D convertor
Typical applications:
In mobile applications, measurements in the engine compartment, around high temperatures and harsh environments.

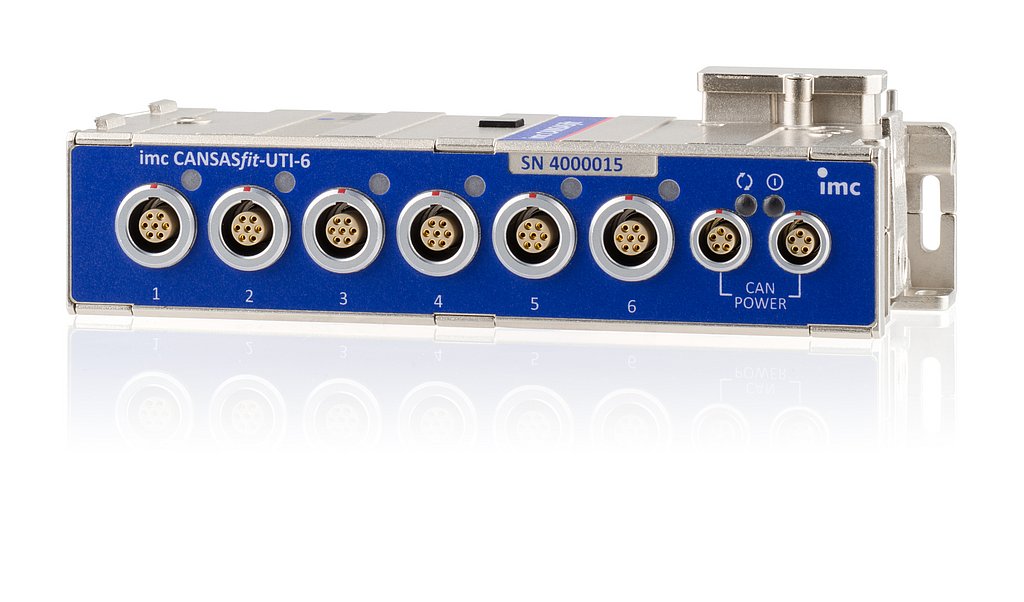

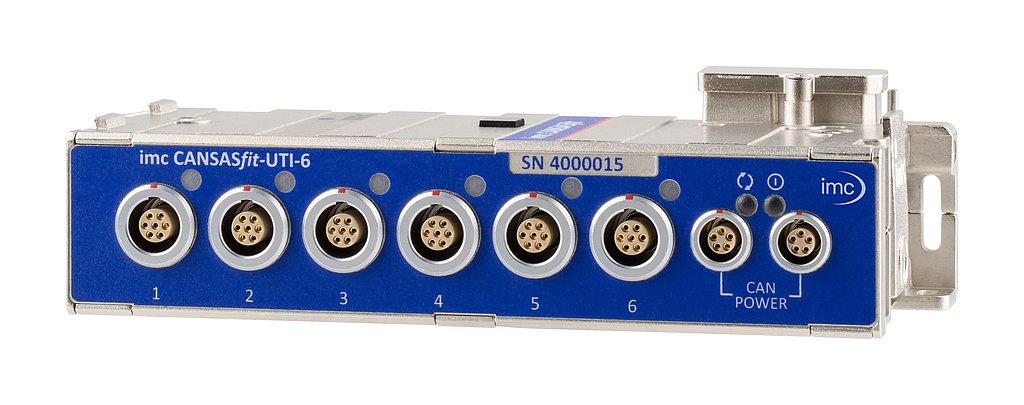

imc CANSASfit-UTI-6
6 channel measurement amplifier for voltage, current and temperature measurements
The UTI-6 from the imc CANSASfit series is a 6 channel measurement amplifier that acquires analog signals, digitizes them, then outputs them via CAN.
Measurement variables:
- Voltage (25 mV to 60V)
- Current (20mA sensors)
- Temperature (PT100, PT1000, NTC)
- Resistance
Features:
- Per channel isolated measurement inputs, individual filter and ADCs
- Adjustable sensor supply (e.g., for active voltage-fed sensors)
- 400 Hz bandwidth with max. 1000 Hz sampling rate per channel
- Measurement ranges and sampling rates can be set per channel in steps of 1, 2, 5
- 24 bit A/D converter
Typical applications:
Robust measurement equipment for mobile use at high temperatures and in harsh environments. Ideal for vehicle and machinery testing where space is limited and conditions can be extreme, e.g., in the engine compartment.
- General voltage signals, incl. vehicle on-board voltages (up to 60V) and current measurements on external shunts (up to 50 mV)
- Active voltage-fed sensors
- Industrial sensors (20mA) for different physical variables
- Temperature measurements with resistance-based sensors (PTxx, NTC)

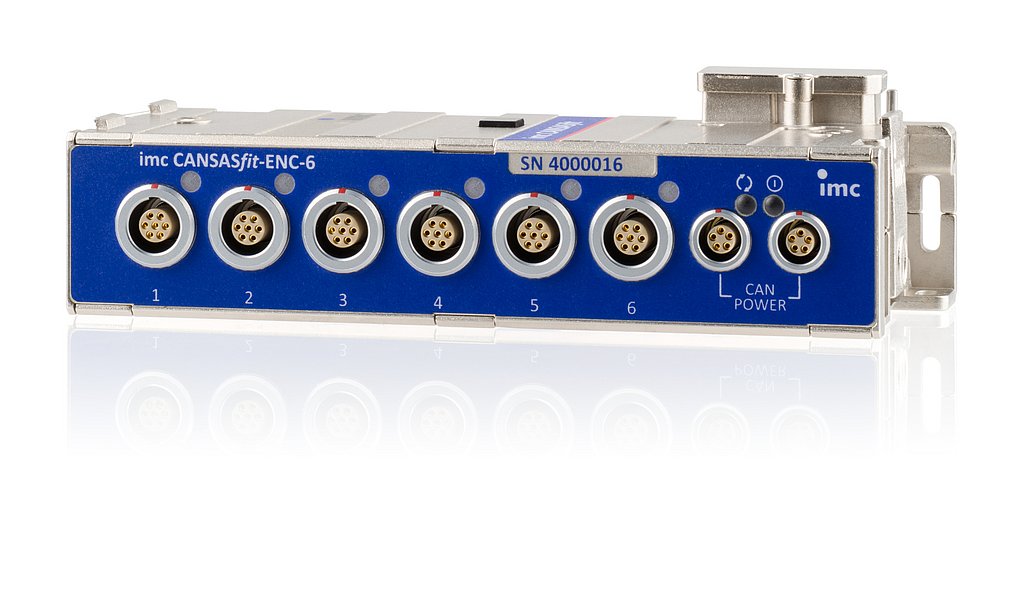

imc CANSASfit-ENC-6
Module for acquisition of frequency, rotation, position and angle counter signals
The ENC-6 module from the imc CANSASfit series offers 6 differential channels which can each be used for event counting, time measurement or a combination of event counting and time measurement. These operating modes enable capture of incremental counter sensors such as those used for measuring frequencies, RPM-values and velocities. The switching threshold and hysteresis are software configurable for the purpose of detecting events or impulses for incremental measurements.

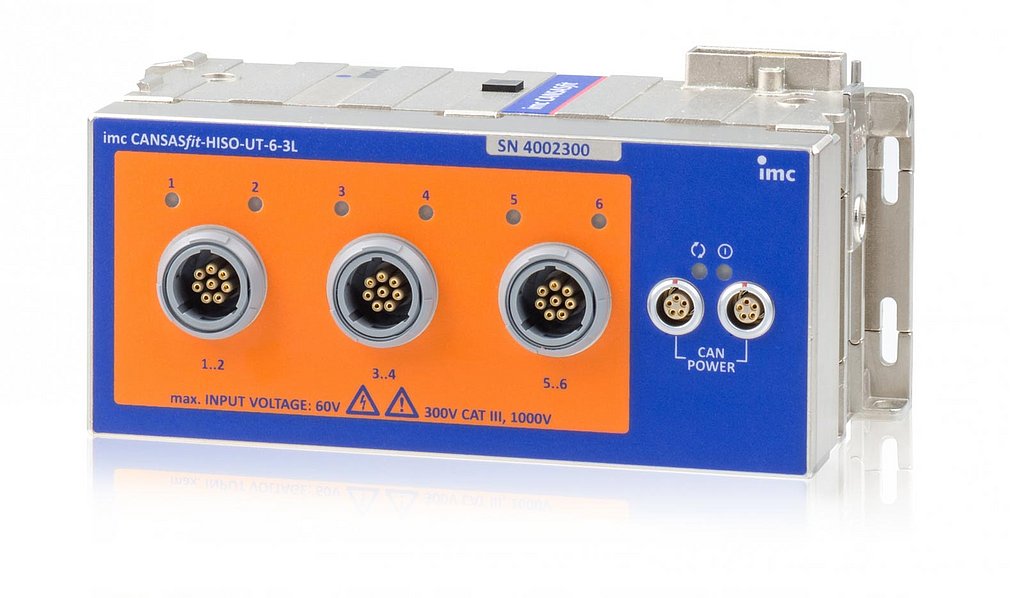

imc CANSASfit-HISO-UT-6-3L
High voltage isolated 6-channel CAN-based measurement module for voltage, temperature (RTD) and resistance (NTC)
Within the imc CANSASfit (CANFT) module series, the HISO series offers particularly highly isolated types that are specially designed for use in high voltage environments. The model UT-6 allows the measurement of low voltages as well as temperature sensors on 6 channels, which are on a high common mode level or in environments with up to 1000 V voltage:
- Voltage (25 mV to 100 V)
- Temperature (PT100, PT1000)
- Resistance (e.g. NTC)
- MEMS accelerometers (5 V sensor supply)
Highlights
- Isolation: 1000 V (according to safety standard DIN EN 61010)
- High-voltage-proof special connectors"3L": 3 x LEMO.2P as common socket (2 channels at each 8-pin socket)
- 5 V sensor supply per-channel (8 mA), suited for MEMS accelerometers (imc AC series)
- Per-channel isolated measurement inputs, individual filtering and ADCs
- 400 Hz bandwidth at max. 1 kSps/channel sampling rate (CAN output rate)
- 24-bit digitization and internal processing CAN-output format selectable: 16-bit or FLOAT (24-bit mantissa)
- Click mechanism providing both mechanical and electrical coupling
Typical applications
- Testing in e-mobility environments (e.g. electric and hybrid vehicles)
- Temperature measurement (esp. PT100/PT1000) on high voltage components in electrical and hybrid vehicles, such as fuel cells and supply circuits
- Measurement of low voltages such as single battery cells and battery modules
- Current measurement shunts on HV level
- Detection of mechanical loads and vibrations on high-voltage batteries
- Environments in which full personal safety must be guaranteed even in the event of faults.

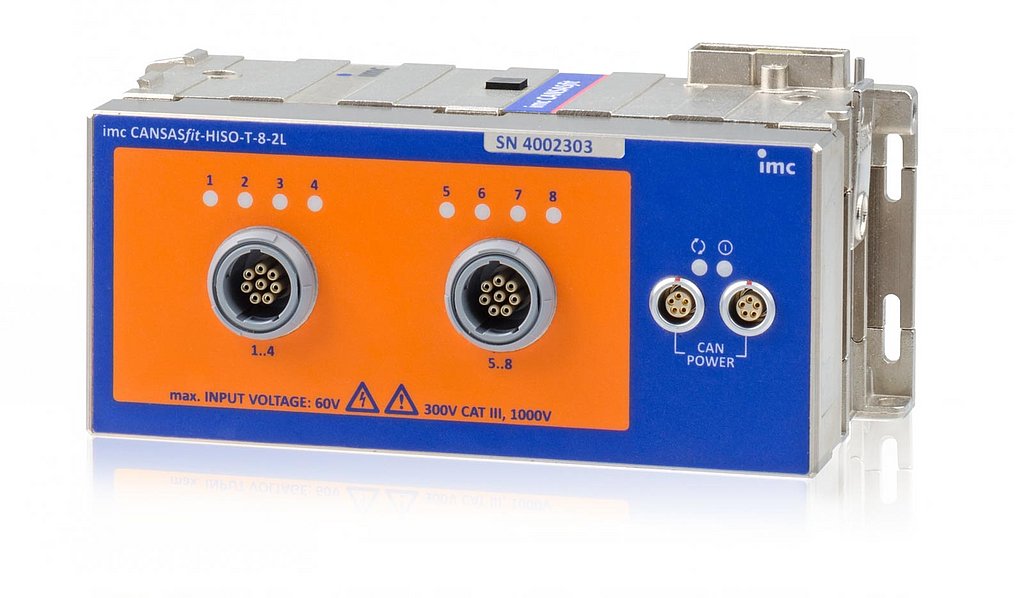

imc CANSASfit-HISO-T-8-2L
High voltage isolated 8-channel CAN-based measurement module for thermocouples
Within the imc CANSASf it (CANFT) module series, the HISO series offers particularly highly isolated types that are specially designed for use in high voltage environments.The model T-8 supports temperature measurement on 8 channels with thermocouples (type K), which are on a high common mode level or in environments with up to 1000 V voltage:
- Temperature with thermocouples type K
Highlights
- Isolation: 1000 V (according to safety standard DIN EN 61010)
- High-voltage-proof special connectors"2L": 2 x LEMO.2P as common socket (4 channels at each 8-pin socket)
- Per-channel isolated measurement inputs, individual filtering and ADCs
- Channel individual internal cold junction compensation
- 24-bit digitization and internal processing CAN-output format selectable: 16-bit or FLOAT (24-bit mantissa)
- Click mechanism providing both mechanical and electrical coupling
Typical applications
- Testing in e-mobility environments (e.g., electric and hybrid vehicles)
- Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries,fuel cells and supply systems
- Environments where personnel safety has to be ensured
imc CANSASfit HISO-HV-4
High voltage isolated 4-channel CAN-based measurement module for high voltages (HV)
The CAN-based measurement model HISO-HV-4 is ideally suited for isolated measurements of high voltage signals up to 1500 V.
Highlights
- Measurement range of +/- 1500 V
- Highly isolated for measurement category 1000 V CAT II
- Test voltage: 5.4 kV ACrms
- Channel by channel isolated measurement inputs, individual filter and ADC
- 400 Hz bandwidth at max. 1000 Sps/channel sampling rate or CAN output rate
- 24-bit digitization and with selectable CAN-output format (16-bit or 32-bit FLOAT)
- Click mechanism providing both mechanical and electrical coupling
Typical applications
- Testing in e-mobility environments (e.g., electric and hybrid vehicles)
- Measurement on battery modules and full stack HV batteries, DC link circuits in electric vehicles etc.
- Environments in which full personal safety must be guaranteed even in the event of faults
