imc Vehicle Dynamics Testing Solutions
Modern vehicles have become complex mechatronic systems composed of numerous moving parts. However, this has also brought new testing challenges, particularly in the field of highly precise vehicle dynamics testing. Vehicle dynamics testing evaluates a vehicle's acceleration, braking, and handling performance, ensuring good dynamic performance and stability under various road and driving conditions. With the increasing complexity and speed brought by innovative technologies like torque vectoring control, new stringent requirements are placed on measurement technology.
Vehicle dynamics testing is a key driver of automotive technology research and innovation. Through continuous testing and optimization, it drives the continuous progress and development of automotive technology. imc's vehicle dynamics testing solutions not only accurately collect basic physical quantities such as wheel force, speed vector, position data, and steering parameters, but also detect the closely related interactions between them, providing an integrated measurement solution from data acquisition sensors to post-processing analysis software.
Learn more
Features:
- Highly integrated structural design
- modular synchronous data acquisition
- rugged waterproof construction, with integrated telemetry transmitter and strain bridge sensors.
Unique Characteristics:
- 24-bit high-resolution
- high-precision, and highly reliable signal transmission with strong anti-interference capability and low latency.
- Capable of synchronously acquiring data from external sensors and bus signals.
Application Scenarios
- Vehicle dynamics testing
- Road running resistance testing
- ABS matching tests
- Fatigue endurance testing
- Road spectrum acquisition
Target Customers
- Automotive OEMs, testing institutions, etc.
Key Questions for System Application
- Vehicle type and weight?
- Passenger vehicles: Microcars + Sedans + SUVs + Light trucks, weight <4t
- Torque and force measurement range?
- Mx,y,z ≤ 10 kNm, Fx,z ≤ 60 kN, Fy < 30 kN
- Wheel hub and rim dimensions?
- Custom-machined hub and rim adapters
- Suitable for both road testing and test benches
- Required protection rating, e.g., IP67
- Do you measure signals from other sensors?
- Expand with CRFX amplifier modules

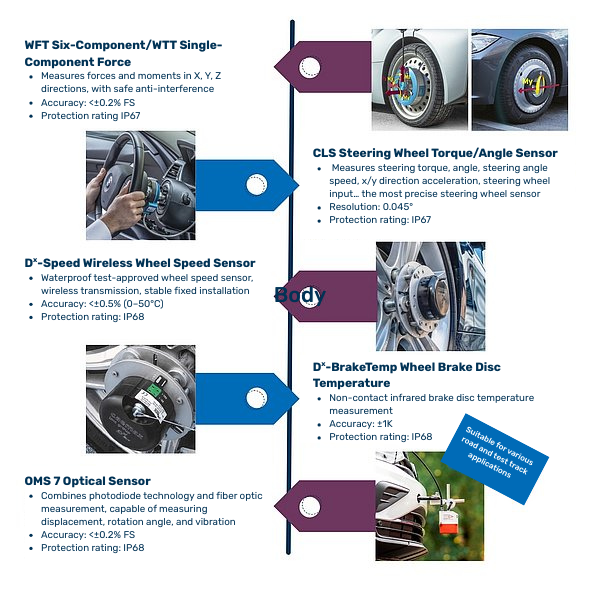

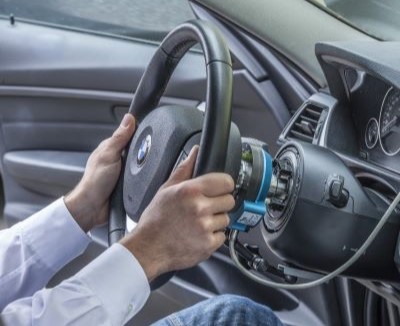

Steering wheel effort sensor

imc CLSx
Measures steering torque, angle, steering speed, acceleration in x, y and z directions with the smallest and lightest sensor on the market
- Angle accuracy: 0.045°
- Protection grade: IP67

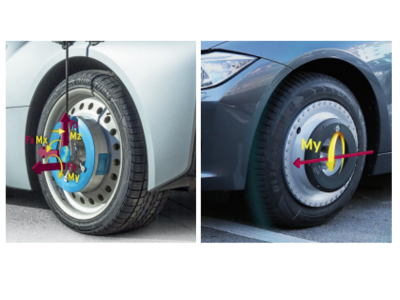

imc Six-Component Wheel Force Transducer

WFT/WTT
Measures forces and torques in X-, Y-, and Z-directions with safety and interference resistance
- Accuracy: <0.2% FS
- Protection rating: IP67

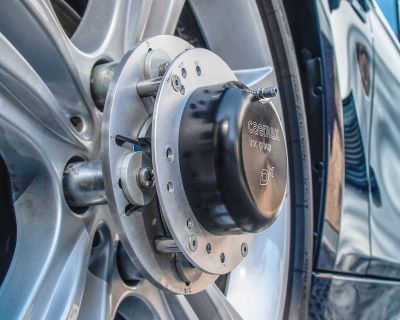

Wireless Wheel Speed Sensor

imc Dx Speed
Ideal for water immersion testing, no additional cables or magnets required
- Accuracy: <0.5% (0-50°C)
- Protection Rating: IP68
Wheel Brake Temperature Sensor

imc Dx BrakeTemp
Non-contact wheel temperature precision measurement
- Accuracy: ±1K
- Protection rating: IP68
