Application: Acceptance testing of ABS motors

• The test bench is used to validate ABS motor specifications
• EC/BLDC motors can be tested
• Additionally, tests & measurements of ECU software for BLDC motors is possible
• Realization of inspections during production

Integrated test, measurement and control with imc:

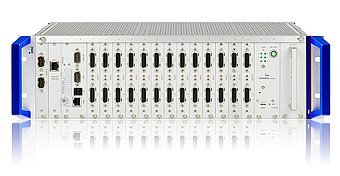

• Measurement data acquisition with imc CRONOScompact- sampling rates up to 100 kS/s per channel
• imc software solutions for R & D test stands
• Types of testing:

  • Characteristic curves
  • Back EMF (electromotive force)
  • Cogging & frictional torques
  • Resistance
  • Ramp profiles
  • Testing of Hall sensors

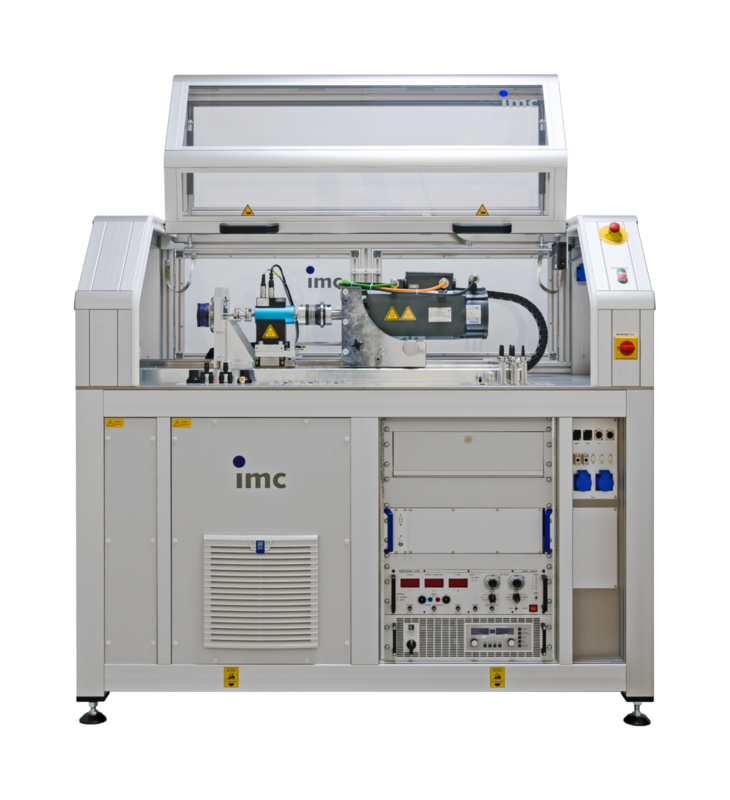

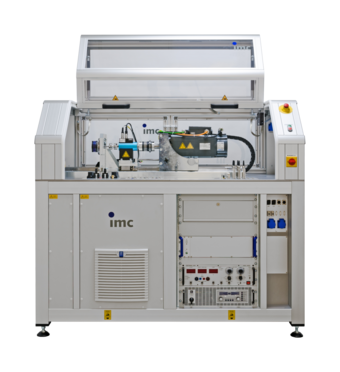

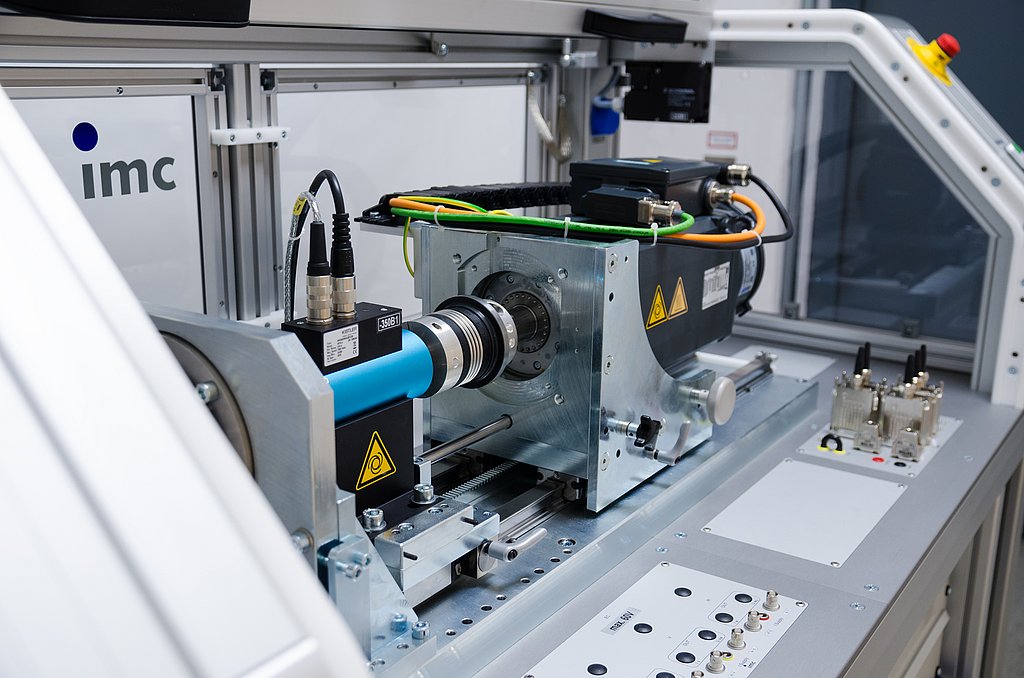

This imc standard test stand has been adapted to meet the requirements of the customer. On this test stand, high-efficiency components are utilized: the energy absorbed by the brake motor is fed back into the grid and can be used again for the electric drive energy. On average, the test bench takes only about 0.5 kW of electrical power.
