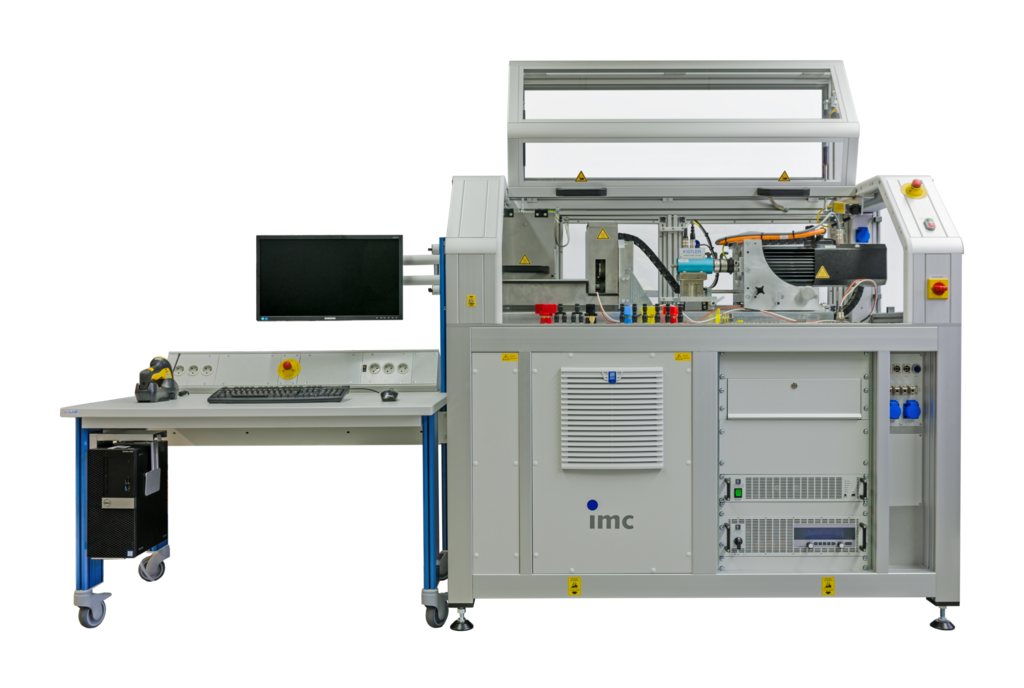

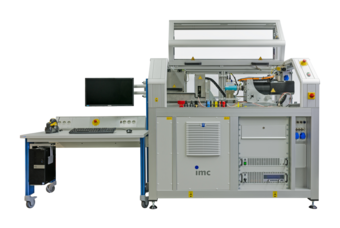

Test stand for pump motors

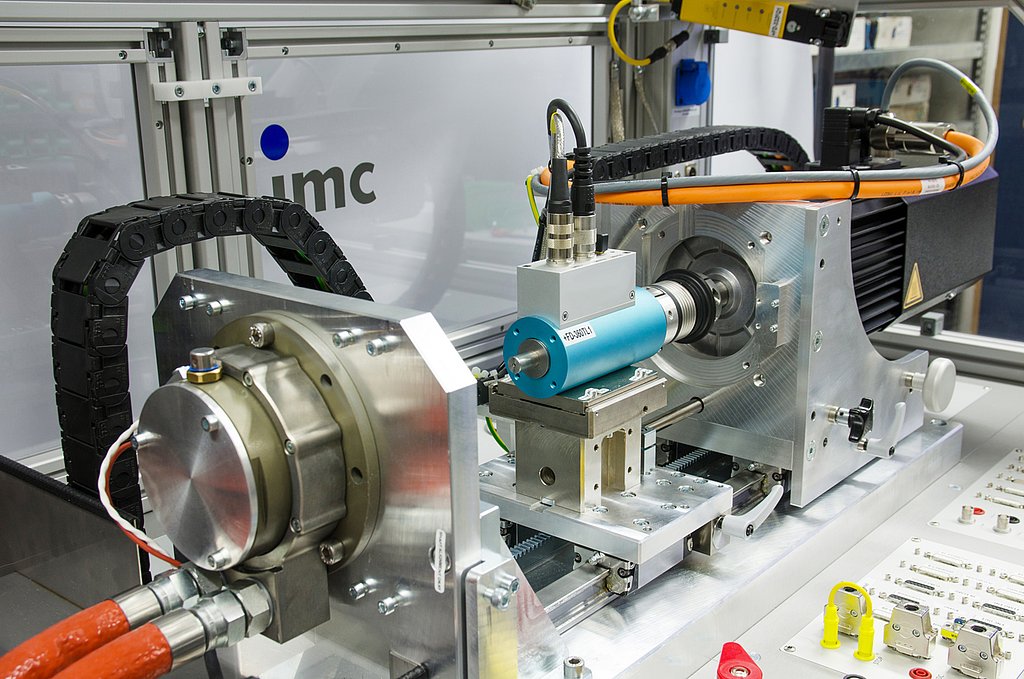

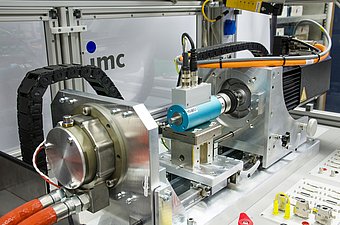

  • The test object (DUT), the pump motor, drives the auxiliary components in the vehicle
  • The test stand is designed to evaluate various key properties of the test object such as characteristic curve, back EMF, cogging and drag torque, as well as its temperature behavior
  • The test object can be operated with the aid of a temperature control unit in the range from +20 °C to +80 °C

Integrated measurement and control with imc:

  • Measurement data acquisition with imc CRONOSflex and imc CANSASflex
  • Calculation and visualization of the characteristic values in real-time with trend development
  • Automated file storage
  • Report generation with imc software solution
  • Test stand sequence control with imc measurement devices
