Ethernet-Switch for imc CRONOSflex with PTP-Synchronization

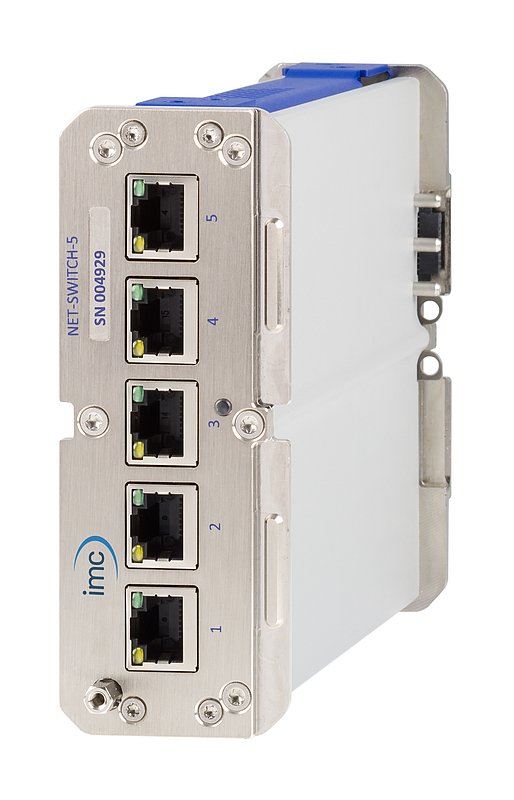

The imc NET-SWITCH-5 is a PTP-capable Network-Switch integrated in a imc CRONOSflex compatible housing (Click-mechanism and power supply). Alternatively it is also available in a imc BUSDAQflex compatible housing.


  • 5 Ethernet-Ports up to 1 GBit/s (1000BaseT)
  • Supports PTP-Synchronization (Precision Time Protocol, IEEE 1588v2, end-to-end transparent clock)
  • Synchronization of imc CRONOSflex (CRFX-2000GP), imc CRONOScompact (CRC-400GP), imc CRONOS-XT (CRXT-2000)
  • Housing compatible for direct docking with CRFX and BUSFX devices
  • Can be operated as Stand-Alone Switch
  • 2-way redundant options for the power supply (10 to 50 V DC)
    • Module connector/locking slider
    • LEMO.0B respectively LEMO.1B with CRFX
  • Compatible with imc UPS-system (battery buffering)
  • Extended operating temperature range for industrial applications: -40 to +85°C
